Product imagery · Open Icecat
Case · ASUS

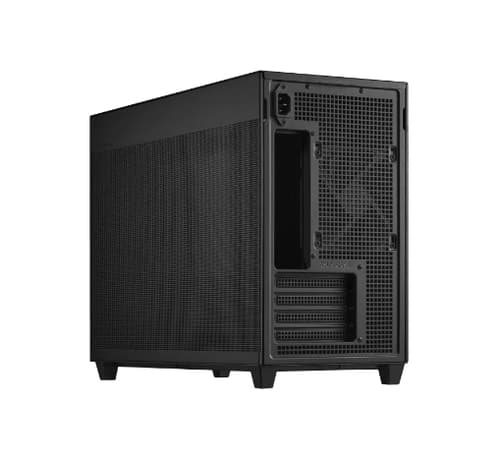

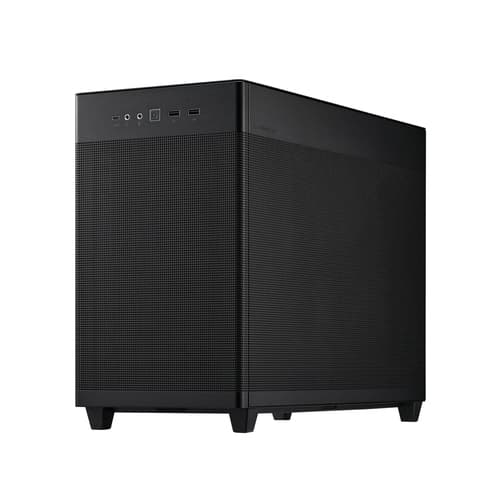

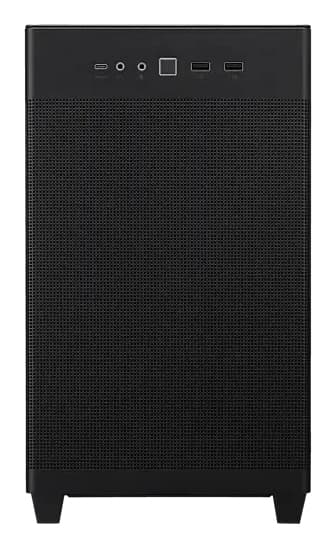

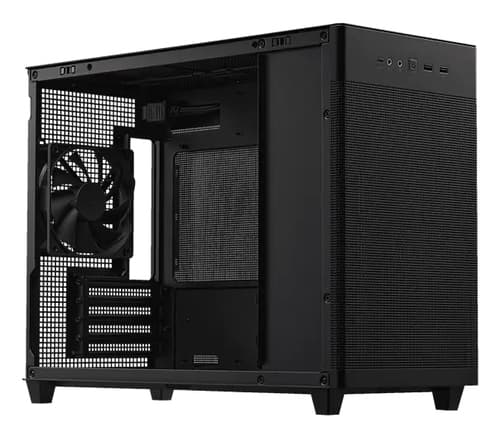

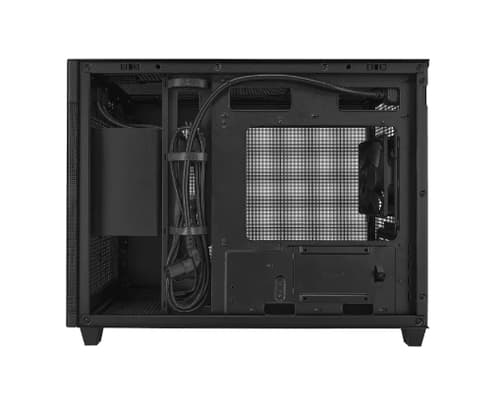

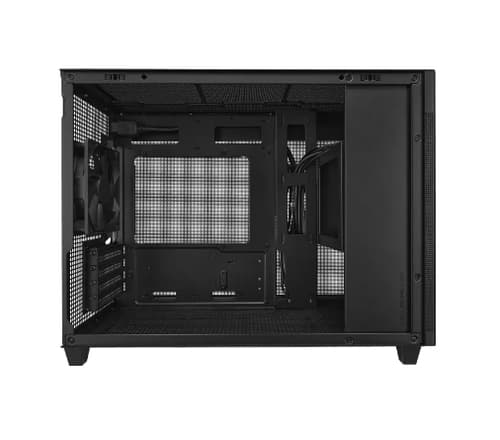

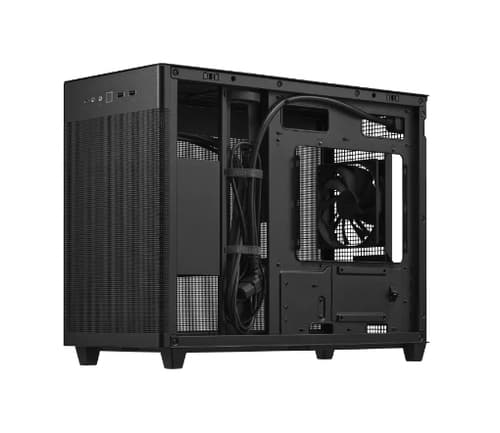

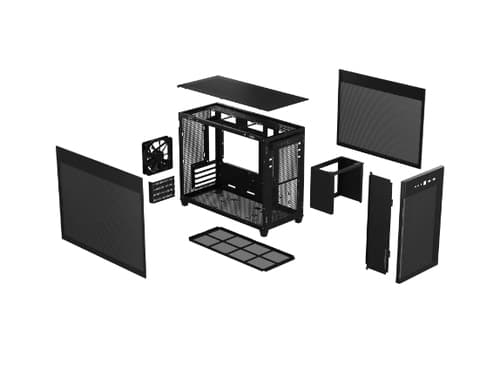

ASUS Prime AP201
ASUS Prime AP201 accepts MATX, ITX motherboards with up to 338 mm of graphics-card clearance and 170 mm of CPU-cooler clearance. It has a 33 L volume and ships with 1 fan.
- Key fit specifications
- Motherboard support: microATX, Mini-ITX · Max GPU length: 338 mm · Max CPU cooler height: 170 mm
- Good fit for
- Builds where desk footprint matters more than clearance
- Know before buying
- 3 2.5-inch bays
Store availability
No active offer
No partner store currently has a verified offer for this model. You can still compare it, check compatibility and use it in a saved build.
Key specifications
The values most likely to affect compatibility and comparison.
- Motherboard support
- microATX, Mini-ITX
- Max GPU length
- 338 mm
- Max CPU cooler height
- 170 mm
- PSU support
- ATX
More specifications (8)Open +
- Radiator support
- 120, 140, 240, 280, 360
- Included fans
- 1
- Sound dampening
- No
- Volume
- 33 L
- 2.5-inch bays
- 3
- Side panel
- Mesh
- Colour
- Black
- RGB included
- No
Compatible parts
Parts in the current catalog that can be paired with this model.
Motherboard5 of 35 compatibleReview +
Works with ASRock B650M Pro RS WiFi, ASUS Prime B650M-A AX II, Gigabyte B650M Aorus Elite AX Ice and 2 more.
ASUS Prime AP201 accepts microATX, Mini-ITX boards, not ATX.
ASUS Prime AP201 accepts microATX, Mini-ITX boards, not ATX.
ASUS Prime AP201 accepts microATX, Mini-ITX boards, not ATX.
Graphics card31 of 32 compatibleReview +
Works with ASUS Dual GeForce RTX 3050 6GB OC, ASUS Dual GeForce RTX 4060 EVO OC 8GB, ASUS Prime GeForce RTX 5060 8GB OC and 28 more.
Only 2 mm of clearance remains (336 mm card in a 338 mm bay). Front fans or stiff power cables may not fit.
Only 6 mm of clearance remains (332 mm card in a 338 mm bay). Front fans or stiff power cables may not fit.
ASUS TUF Gaming GeForce RTX 4080 Super 16GB is 348 mm long; ASUS Prime AP201 allows 338 mm.
CPU cooler36 of 37 compatibleReview +
Works with ARCTIC Freezer 36 Black, ARCTIC Freezer A35, ARCTIC Freezer i35 and 33 more.
Only 7 mm above the 163 mm cooler. The side panel will fit, but tall memory or a thicker fan will not.
Only 2 mm above the 168 mm cooler. The side panel will fit, but tall memory or a thicker fan will not.
Only 1 mm above the 169 mm cooler. The side panel will fit, but tall memory or a thicker fan will not.
ASUS Prime AP201 mounts 120 / 140 / 240 / 280 / 360 mm radiators and cannot take the 420 mm radiator of be quiet! Silent Loop 3 420mm.
Power supply24 of 24 compatibleReview +
Works with ASUS TUF Gaming 1000W Gold, ASUS TUF Gaming 1000W Gold White Edition, be quiet! Pure Power 12 M 750W and 21 more.
Corsair SF1000 (2024) is an SFX unit in an ATX bay. An SFX-to-ATX mounting bracket is required.
Corsair SF750 (2024) is an SFX unit in an ATX bay. An SFX-to-ATX mounting bracket is required.
Exact models and identifiers1 exact configuration · useful when checking a store listingOpen +
| Configuration | Exact identity | Offers | Best known total |
|---|---|---|---|
| Default configurationDefault family configuration | GTIN 4711081771821MPN 90DC00G0-B39000 | 0 | — |
Source details13 field-level source claims, retrieval dates and confidence valuesOpen +
| Field | Source | Retrieved | Confidence |
|---|---|---|---|
colorway | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
driveBays25 | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
includedFans | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
maxCoolerHeightMm | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
maxGpuLengthMm | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
noiseIndex | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
radiatorSupportMm | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
rgbIncluded | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
sidePanel | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
soundDampening | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
supportedMotherboardFormFactors | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
supportedPsuFormFactors | Open Icecat PC-case content (opens source in a new tab) | Oct 07, 2026 | 95% |
volumeLitres | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
