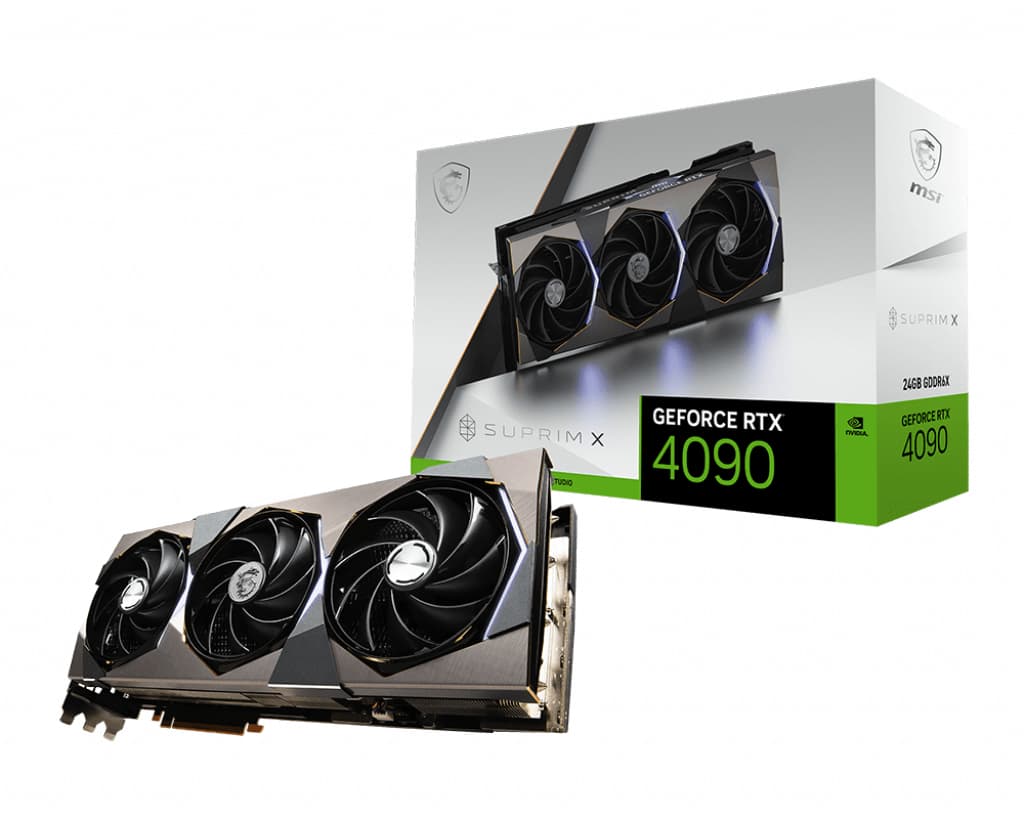

MSI GeForce RTX 4090 Suprim X 24G
MSI GeForce RTX 4090 Suprim X 24G pairs 24 GB of GDDR6X memory with a 450 W board power and a 336 mm card length. It scores 100 at 1080p, 100 at 1440p and 100 at 4K on the Rigwise preview performance index. The specification profile recommends a power supply rated for at least 1000 W.
Best for
- High-refresh 1440p and playable 4K
- Ray-traced titles where reflections and global illumination matter
Main trade-offs
- At 336 mm it rules out compact chassis — check case clearance first
- Needs a 12V-2x6 connector or a bundled adapter fed by separate 8-pin cables
Lowest sample total
$1,748
Across 3 demo retailer offers including shipping. 4% below the sample-window median.
- Offers
- 3
- Updated
- Aug 12, 2026
3 in stock
Data version lquy6dkw0qq7
Retailer offers
Retailer offers
Ranked by delivered total, stock and data freshness. Commission never affects this order.
| Retailer | Price | Shipping | Total | Availability | Open retailer |
|---|---|---|---|---|---|
| Atlas ComponentsBest totalNo affiliate linkSample feed30-day returns · observed 4 d ago | $1,747.99 | Free | $1,747.99 | In stock | Go to store |
| Nordic PartsAffiliate partnerSample feed30-day returns · observed 4 d ago | $1,776.99 | Free | $1,776.99 | In stock | Go to store |
| BitForge SupplyAffiliate partnerSample feed14-day returns · observed 4 d ago | $1,857.99 | $4.99 | $1,862.98 | In stock | Go to store |
Sample data — illustrative fixture prices from a demo feed, not live retailer quotes. We are not the seller and take no payment. How offers are verified.
Price history
Lowest observed sample total per observation date, 9 points.
- Lowest
- $1,722
- Highest
- $1,894
- Median
- $1,820
- Current best
- $1,748
Dashed line marks the median of the sample window. All values are illustrative fixture data.
Normalized specifications
Canonical values after unit normalization. Fields used by the compatibility engine are marked.
- VRAM
- 24 GB
- Memory type
- GDDR6X
- Card lengthcompat
- 336 mm
- Slot width
- 3.75
- Board power
- 450 W
- Recommended PSUcompat
- 1000 W
- Power connectorscompat
- 12V-2x6
- 1080p performance index
- 100
- 1440p performance index
- 100
- 4K performance index
- 100
- Ray-tracing index
- 100
- Acoustic index (lower is quieter)
- 43
- Launch year
- 2022
Gaming performance at 1440p, High preset
Every value carries its evidence type: measured, normalized, synthetic preview or modelled estimate. The distinction is never hidden.
| Game | Average | 1 % low | Evidence |
|---|---|---|---|
| Aurora Protocolv1.4.2 | 109 fps | 85 fps | Estimated · 58% conf. |
| Circuit LegendsSeason 9.3 | 311 fps | 243 fps | Estimated · 58% conf. |
| Kingdoms of Ashv3.1 | 159 fps | 124 fps | Estimated · 58% conf. |
| Ridgeline Rallyv2026.1 | 182 fps | 142 fps | Estimated · 58% conf. |
| Void Sectorv0.9.7 early access | 199 fps | 155 fps | Estimated · 58% conf. |
Evidence classification and the preview model are described in the methodology. The hardware identity is real; current workloads and results are synthetic preview data.
Compatibility
Every pairing below was evaluated by the same rule engine the builder uses.
Case
19 of 20 compatibleWorks with ASUS Prime AP201, Corsair 4000D Airflow, Corsair 5000D Airflow and 16 more.
Only 2 mm of clearance remains (336 mm card in a 338 mm bay). Front fans or stiff power cables may not fit.
MSI GeForce RTX 4090 Suprim X 24G is 336 mm long; Cooler Master MasterBox NR200P allows 330 mm.
Power supply
20 of 20 compatibleWorks with ASUS TUF Gaming 1000W Gold, Cooler Master MWE Gold 850 V2 Full Modular, Corsair RM1000x (2024) and 17 more.

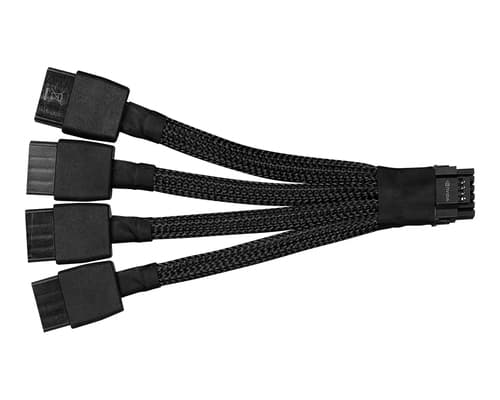

MSI GeForce RTX 4090 Suprim X 24G needs a 12V-2x6 plug that Cooler Master MWE Gold 850 V2 Full Modular does not provide natively. Use the bundled adapter and connect 3 separate 8-pin PCIe cables.
MSI GeForce RTX 4090 Suprim X 24G needs a 12V-2x6 plug that EVGA SuperNOVA 850 G7 does not provide natively. Use the bundled adapter and connect 3 separate 8-pin PCIe cables.
Provenance
Every canonical value carries the source it came from, when it was retrieved and how confident we are.
| Field | Source | Retrieved | Confidence |
|---|---|---|---|
launchYear | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
lengthMm | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
noiseIndex | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
perfIndex1080p | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
perfIndex1440p | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
perfIndex2160p | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
powerConnectors | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
rayTracingIndex | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
recommendedPsuW | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
slotWidth | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
tdpW | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
vramGb | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
vramType | Rigwise curated manufacturer catalog | Aug 12, 2026 | 95% |
Catalog preview
MSI GeForce RTX 4090 Suprim X 24G is a real product identity with curated compatibility specifications. Sample prices, availability, performance values and acoustic indexes are included to exercise the decision system and are not live or measured evidence.
