Motherboard · ASUS

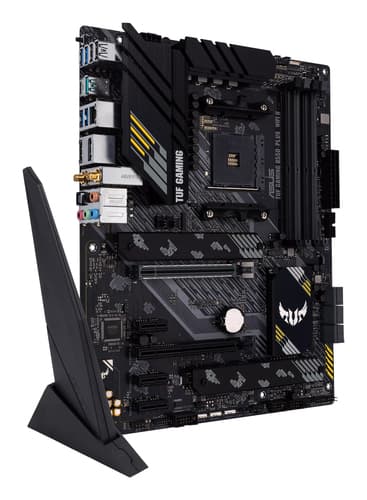

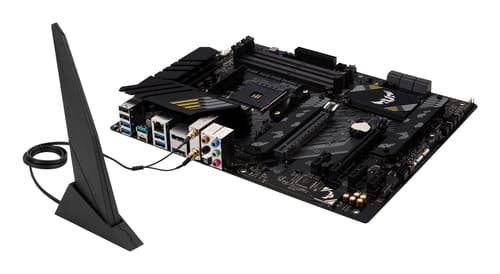

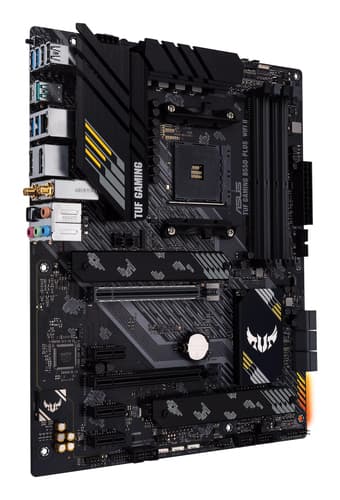

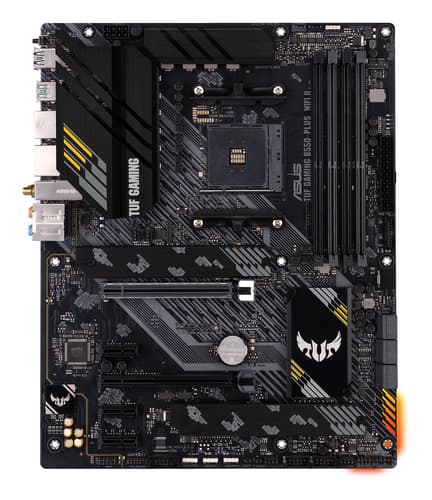

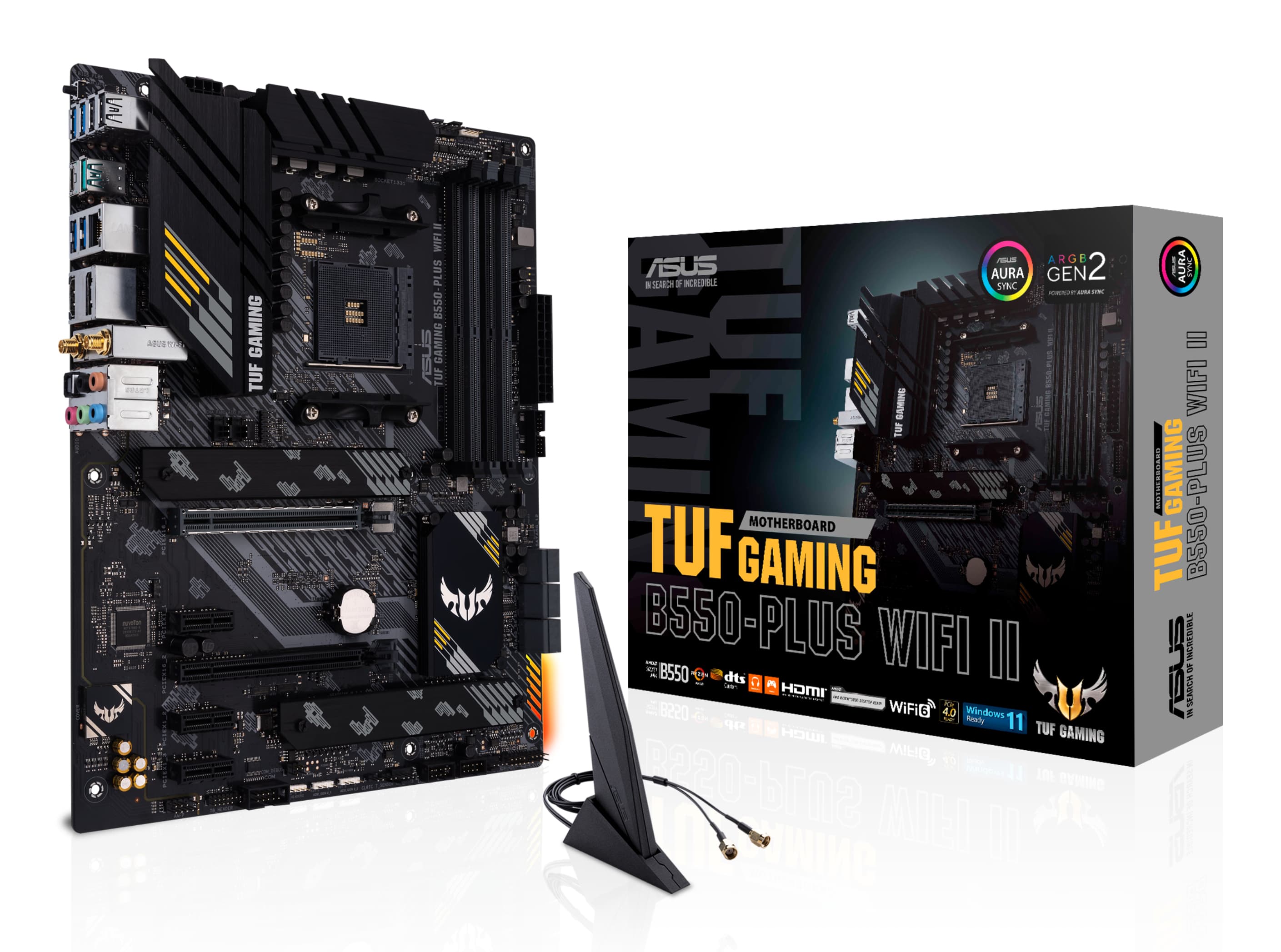

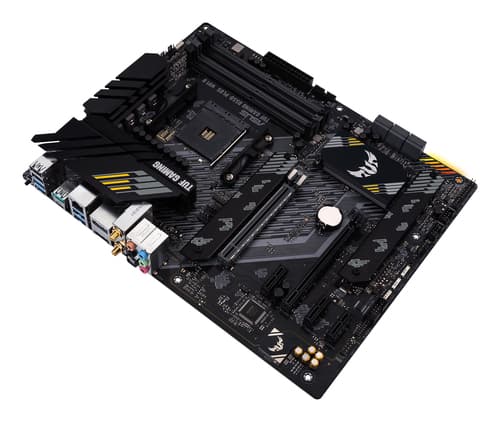

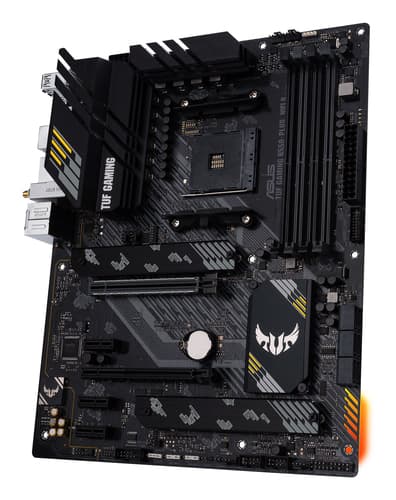

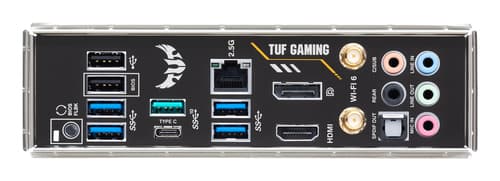

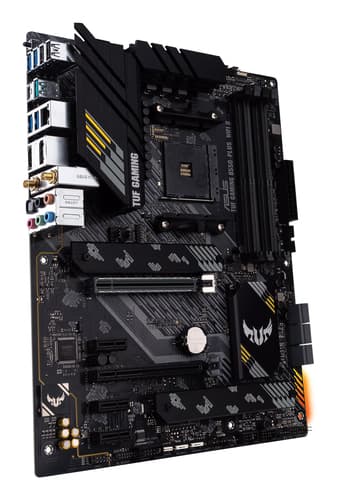

ASUS TUF Gaming B550-Plus WiFi II
ASUS TUF Gaming B550-Plus WiFi II is a ATX board for AM4 processors on the B550 chipset.
- Key fit specifications
- Socket: AM4 · Chipset: B550 · Form factor: ATX
- Good fit for
- Cost-controlled builds that will be replaced whole rather than upgraded
- Know before buying
- PCIe 5.0 drives run at PCIe 4.0 speeds in these M.2 slots
Store availability
No active offer
No partner store currently has a verified offer for this model. You can still compare it, check compatibility and use it in a saved build.
Key specifications
The values most likely to affect compatibility and comparison.
- Socket
- AM4
- Chipset
- B550
- Form factor
- ATX
- Memory generation
- DDR4
More specifications (10)Open +
- Memory slots
- 4
- Maximum memory
- 128 GB
- Maximum memory speed
- 4866 MT/s
- M.2 slots
- 2
- M.2 max PCIe generation
- 4
- SATA ports
- 6
- Primary PCIe slot generation
- 4
- VRM tier
- Enhanced
- Wi-Fi
- Yes
- Launch year
- 2021
Compatible parts
Parts in the current catalog that can be paired with this model.
CPU2 of 20 compatibleReview +
Works with AMD Ryzen 5 5600, AMD Ryzen 7 5700X3D.
AMD Ryzen 5 7600 uses socket AM5 but ASUS TUF Gaming B550-Plus WiFi II provides socket AM4.
AMD Ryzen 5 7600X uses socket AM5 but ASUS TUF Gaming B550-Plus WiFi II provides socket AM4.
AMD Ryzen 5 9600X uses socket AM5 but ASUS TUF Gaming B550-Plus WiFi II provides socket AM4.
Memory6 of 22 compatibleReview +
Works with Corsair Vengeance LPX 16GB (2x8GB) DDR4-3200 CL16, Corsair Vengeance LPX 32GB (2x16GB) DDR4-3600 CL18, G.Skill Ripjaws V 32GB (2x16GB) DDR4-3600 CL16 and 3 more.
Corsair Vengeance 32GB (2x16GB) DDR5-6000 CL30 is DDR5 but ASUS TUF Gaming B550-Plus WiFi II accepts DDR4 only.
Corsair Vengeance 64GB (2x32GB) DDR5-6000 CL30 is DDR5 but ASUS TUF Gaming B550-Plus WiFi II accepts DDR4 only.
Corsair Vengeance RGB 32GB (2x16GB) DDR5-6000 CL30 is DDR5 but ASUS TUF Gaming B550-Plus WiFi II accepts DDR4 only.
Case36 of 38 compatibleReview +
Works with be quiet! Dark Base 700 Black, be quiet! Dark Base 701 Black, be quiet! Dark Base Pro 901 Black and 33 more.
ASUS Prime AP201 accepts microATX, Mini-ITX boards, not ATX.
Cooler Master MasterBox NR200P accepts Mini-ITX boards, not ATX.
Storage44 of 44 compatibleReview +
Works with Corsair MP700 PRO 2TB, Crucial MX500 2TB, Crucial P310 2TB and 41 more.
Corsair MP700 PRO 2TB is a PCIe 5.0 drive in a PCIe 4.0 slot. It works, capped near 7 400 MB/s instead of 12400 MB/s.
Crucial T705 2TB is a PCIe 5.0 drive in a PCIe 4.0 slot. It works, capped near 7 400 MB/s instead of 14500 MB/s.
Samsung 9100 PRO 2TB is a PCIe 5.0 drive in a PCIe 4.0 slot. It works, capped near 7 400 MB/s instead of 14700 MB/s.
Exact models and identifiers1 exact configuration · useful when checking a store listingOpen +
| Configuration | Exact identity | Offers | Best known total |
|---|---|---|---|
| Default configurationDefault family configuration | GTIN 4711081338413MPN 90MB19U0-M0EAY0 | 0 | — |
