Motherboard · Gigabyte

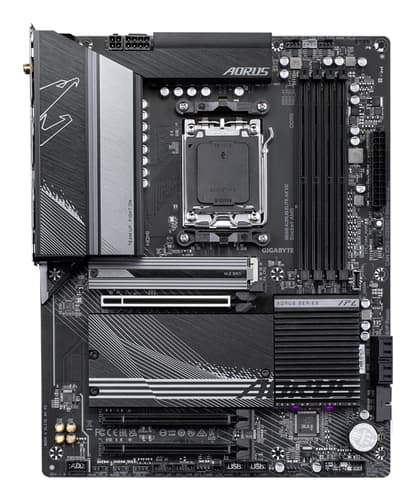

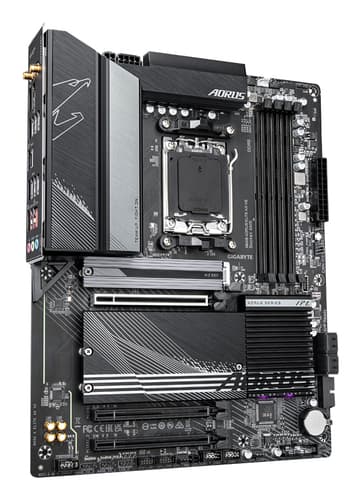

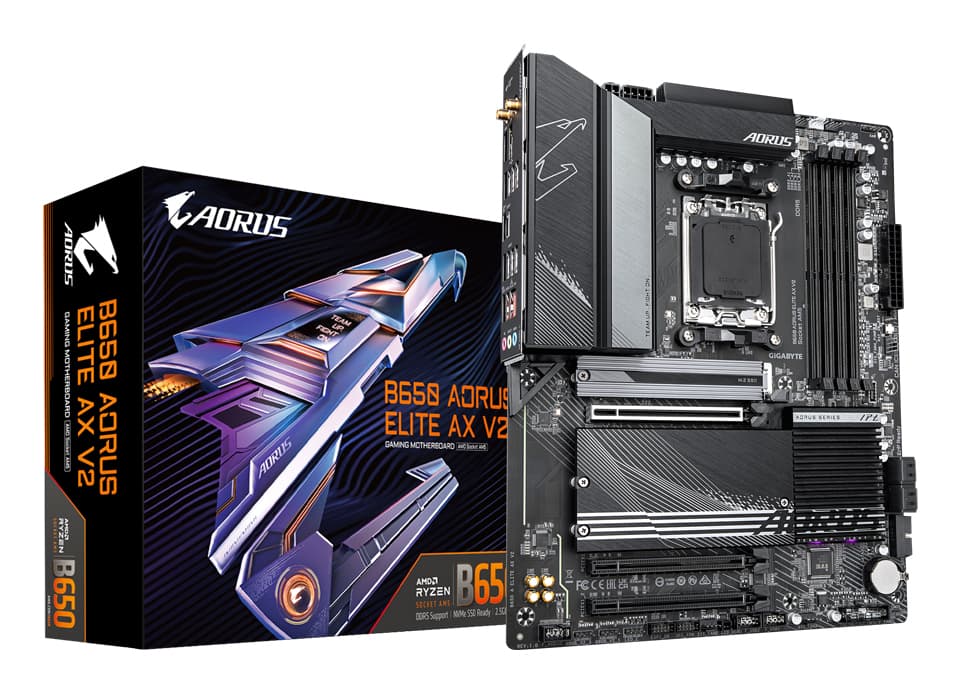

Gigabyte B650 Aorus Elite AX V2

Current productReleased 2023Model B650 Aorus Elite AX V2

Gigabyte B650 Aorus Elite AX V2 is a ATX board for AM5 processors on the B650 chipset. It takes up to 192 GB of DDR5 memory across 4 slots, provides 3 M.2 slots up to PCIe 5.0 and 4 SATA ports, and scores 88 for platform longevity on the Rigwise preview scale.

Best for

  • Builds that plan a processor upgrade on the same board
  • 3 M.2 slots for storage expansion without adapters

Main trade-offs

  • Premium chipset pricing
  • ENHANCED power delivery

Lowest sample total

$186

Sample data

Across 3 demo retailer offers including shipping. 4.1% below the sample-window median.

Offers
3

3 in stock

Updated
Aug 12, 2026

Data version lquy6dkw0qq7

Build a PC around this partCompare with ASUS TUF Gaming B760-Plus WiFi

Retailer offers

Retailer offers

Ranked by delivered total, stock and data freshness. Commission never affects this order.

Sample data
Sample data — illustrative fixture prices from a demo feed, not live retailer quotes.
RetailerPriceShippingTotalAvailabilityOpen retailer
Atlas ComponentsBest totalNo affiliate linkSample feed30-day returns · observed 4 d ago$185.99Free$185.99In stockGo to store
Nordic PartsAffiliate partnerSample feed30-day returns · observed 4 d ago$200.99Free$200.99In stockGo to store
BitForge SupplyAffiliate partnerSample feed14-day returns · observed 4 d ago$198.99$4.99$203.98In stockGo to store

Sample data — illustrative fixture prices from a demo feed, not live retailer quotes. We are not the seller and take no payment. How offers are verified.

Price history

Lowest observed sample total per observation date, 9 points.

Sample data
Lowest
$181
Highest
$207
Median
$194
Current best
$186

Dashed line marks the median of the sample window. All values are illustrative fixture data.

Normalized specifications

Canonical values after unit normalization. Fields used by the compatibility engine are marked.

Socketcompat
AM5
Chipsetcompat
B650
Form factorcompat
ATX
Memory generationcompat
DDR5
Memory slots
4
Maximum memorycompat
192 GB
Maximum memory speed
8000 MT/s
M.2 slotscompat
3
M.2 max PCIe generation
5
SATA portscompat
4
Primary PCIe slot generation
4
VRM tier
Enhanced
Wi-Fi
Yes
Platform longevity index (demo scale 0–100)
88
Launch year
2023

Compatibility

Every pairing below was evaluated by the same rule engine the builder uses.

  • CPU

    9 of 20 compatible

    Works with AMD Ryzen 5 7600, AMD Ryzen 5 7600X, AMD Ryzen 5 9600X and 6 more.

    AMD Ryzen 5 5600 uses socket AM4 but Gigabyte B650 Aorus Elite AX V2 provides socket AM5.

    AMD Ryzen 7 5700X3D uses socket AM4 but Gigabyte B650 Aorus Elite AX V2 provides socket AM5.

    Intel Core Ultra 5 245K uses socket LGA1851 but Gigabyte B650 Aorus Elite AX V2 provides socket AM5.

  • Memory

    15 of 20 compatible

    Works with Corsair Vengeance 32GB (2x16GB) DDR5-6000 CL30, Corsair Vengeance 64GB (2x32GB) DDR5-6000 CL30, Corsair Vengeance RGB 32GB (2x16GB) DDR5-6000 CL30 and 12 more.

    Corsair Vengeance LPX 16GB (2x8GB) DDR4-3200 CL16 is DDR4 but Gigabyte B650 Aorus Elite AX V2 accepts DDR5 only.

    Corsair Vengeance LPX 32GB (2x16GB) DDR4-3600 CL18 is DDR4 but Gigabyte B650 Aorus Elite AX V2 accepts DDR5 only.

    G.Skill Ripjaws V 32GB (2x16GB) DDR4-3600 CL16 is DDR4 but Gigabyte B650 Aorus Elite AX V2 accepts DDR5 only.

  • Case

    18 of 20 compatible

    Works with Corsair 4000D Airflow, Corsair 5000D Airflow, Fractal Design Define 7 and 15 more.

    ASUS Prime AP201 accepts microATX, Mini-ITX boards, not ATX.

    Cooler Master MasterBox NR200P accepts Mini-ITX boards, not ATX.

  • Storage

    20 of 20 compatible

    Works with Corsair MP700 PRO 2TB, Crucial MX500 2TB, Crucial P310 2TB and 17 more.

Provenance

Every canonical value carries the source it came from, when it was retrieved and how confident we are.

FieldSourceRetrievedConfidence
biosUpdateRequiredForCpusRigwise curated manufacturer catalogAug 12, 202698%
chipsetRigwise curated manufacturer catalogAug 12, 202695%
formFactorRigwise curated manufacturer catalogAug 12, 202695%
launchYearRigwise curated manufacturer catalogAug 12, 202695%
m2MaxPcieGenRigwise curated manufacturer catalogAug 12, 202695%
m2SlotsRigwise curated manufacturer catalogAug 12, 202695%
maxMemoryGbRigwise curated manufacturer catalogAug 12, 202695%
maxMemoryMtsRigwise curated manufacturer catalogAug 12, 202695%
memoryGenerationRigwise curated manufacturer catalogAug 12, 202695%
memorySlotsRigwise curated manufacturer catalogAug 12, 202695%
pcieSlotGenRigwise curated manufacturer catalogAug 12, 202695%
platformLongevityIndexRigwise curated manufacturer catalogAug 12, 202695%
sataPortsRigwise curated manufacturer catalogAug 12, 202695%
socketRigwise curated manufacturer catalogAug 12, 202695%
vrmTierRigwise curated manufacturer catalogAug 12, 202695%
wifiRigwise curated manufacturer catalogAug 12, 202695%

Catalog preview

Gigabyte B650 Aorus Elite AX V2 is a real product identity with curated compatibility specifications. Sample prices, availability, performance values and acoustic indexes are included to exercise the decision system and are not live or measured evidence.
